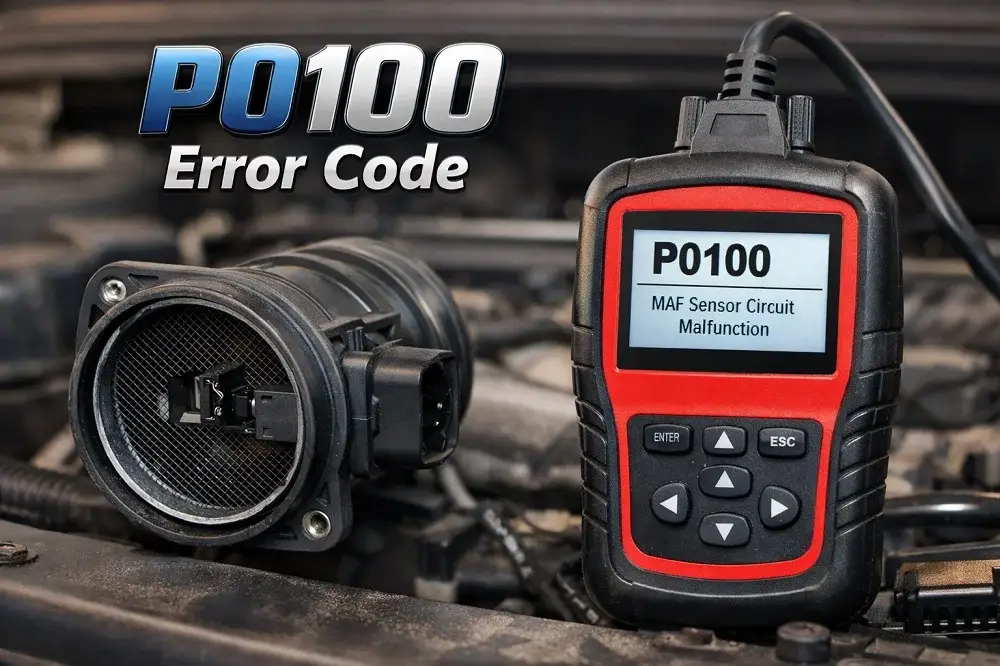

The P0100 error code is a diagnostic trouble code (DTC) that indicates a malfunction in the Mass Air Flow (MAF) sensor circuit. This issue is detected by the Engine Control Module (ECM) when the air flow data received from the sensor falls outside the expected range.
The MAF sensor is one of the most critical components in the engine management system. It measures the amount of air entering the engine and helps calculate the correct air-fuel mixture for combustion.
👉 When the P0100 error code appears, it means the engine is no longer receiving accurate airflow data, which can directly impact performance and efficiency.
What Does the MAF Sensor Do?
The Mass Air Flow (MAF) sensor is located in the air intake system, usually between the air filter and the throttle body.
Its main functions include:
- Measuring air volume and density entering the engine
- Helping the ECM adjust fuel injection timing
- Ensuring optimal combustion efficiency
- Reducing emissions
Some MAF sensors also measure intake air temperature, allowing the system to make even more precise adjustments.
👉 A faulty MAF sensor can disrupt the entire combustion process.
Causes of the P0100 Error Code
There are several reasons why the P0100 error code may occur:
- Dirty or contaminated MAF sensor (dust, oil, debris)
- Faulty or damaged MAF sensor
- Air intake leaks (vacuum leaks)
- Broken, loose, or corroded wiring
- Short circuit or open circuit in MAF wiring
- Faulty air filter or clogged intake system
- Problems with ECM or related sensors
👉 The most common cause is a dirty or failing MAF sensor.
Symptoms of the P0100 Error Code
When the P0100 error code is triggered, you may notice the following symptoms:
- Check Engine Light (MIL) turns on
- Engine runs rough or unstable
- Loss of engine power
- Poor fuel economy
- Black smoke from exhaust
- Difficulty starting the engine
- Engine hesitation or stalling
👉 Some vehicles may show minimal symptoms at first, but the problem can worsen quickly.
Related Trouble Codes
The P0100 error code is often accompanied by other MAF-related codes:
- P0101: MAF Circuit Range/Performance Problem
- P0102: MAF Circuit Low Input
- P0103: MAF Circuit High Input
- P0104: MAF Circuit Intermittent
👉 These codes help narrow down the exact nature of the problem.
When Is the P0100 Code Triggered?
The ECM stores the P0100 error code when:
- The MAF sensor signal is outside normal frequency range
- The sensor data is inconsistent with other engine parameters
- The circuit fails to respond properly
👉 This indicates the ECM cannot rely on airflow data for proper fuel control.
Effects of the P0100 Error Code
The P0100 error code can lead to serious consequences if ignored:
- Reduced engine performance
- Increased fuel consumption
- Higher emissions levels
- Potential damage to catalytic converter
- Long-term engine inefficiency
👉 Driving with this code for extended periods is not recommended.
How to Diagnose the P0100 Error Code
Proper diagnosis is critical to avoid unnecessary repairs.
🔍 Diagnosis steps:
- Use an OBD-II scanner to confirm the P0100 error code
- Inspect MAF sensor wiring and connectors
- Check for air intake leaks
- Examine the air filter condition
- Monitor live data from MAF sensor
- Compare readings with manufacturer specifications
👉 Live data analysis is one of the most effective diagnostic methods.
How to Fix the P0100 Error Code
To resolve the P0100 error code, follow these solutions:
🔧 Clean the MAF Sensor
- Use a special MAF cleaner spray
- Do not touch sensor elements directly
🔧 Replace the Air Filter
- Ensure proper airflow
- Use OEM-quality filters
🔧 Check Intake System
- Fix any vacuum leaks or cracks
🔧 Inspect Wiring and Connections
- Repair damaged wires
- Tighten loose connectors
🔧 Replace the MAF Sensor
- If cleaning does not fix the issue
- Use original or high-quality parts
👉 Most P0100 issues are resolved by cleaning or replacing the MAF sensor.
Estimated Repair Cost for P0100 Error Code
Repair costs for the P0100 error code vary:
- Labor time: 1 hour
- Labor cost: $75 – $150
- MAF sensor replacement: $100 – $300
👉 Total estimated cost: $150 – $400
Can You Drive with a P0100 Error Code?
Yes, but it is not recommended.
Driving with the P0100 error code can cause:
- Poor engine performance
- Increased fuel consumption
- Potential long-term damage
👉 Fix the issue as soon as possible for safe driving.
Preventing P0100 Error Code
To prevent the P0100 error code:
- Replace air filter regularly
- Avoid using over-oiled filters
- Clean MAF sensor periodically
- Inspect intake system for leaks
👉 Regular maintenance significantly reduces the risk.
Final Thoughts on P0100 Error Code
The P0100 error code is a critical warning related to the air intake system and MAF sensor.
To summarize:
- Identify the root cause early
- Clean or replace faulty components
- Avoid ignoring warning signs
👉 Timely repairs ensure optimal engine performance and fuel efficiency.
Frequently Asked Questions
What does the P0100 error code mean in a vehicle?
The P0100 error code indicates a malfunction in the Mass Air Flow (MAF) sensor circuit, meaning the engine control unit cannot accurately measure the air entering the engine. This leads to an incorrect air-fuel mixture, which directly affects engine performance, fuel consumption, and emissions.
Can a dirty MAF sensor cause the P0100 error code?
Yes, a dirty or contaminated MAF sensor is one of the most common causes of the P0100 error code. Dust, oil, and debris can accumulate on the sensor over time, preventing it from providing accurate readings. Cleaning the sensor with a proper MAF cleaner often resolves the issue.
What happens if I ignore the P0100 error code?
Ignoring the P0100 error code can lead to worsening engine performance, including rough idling, increased fuel consumption, and possible engine stalling. Over time, it may also cause damage to components like the catalytic converter due to improper combustion.
How do I fix the P0100 error code?
To fix the P0100 error code, you should start by inspecting and cleaning the MAF sensor, checking the air filter, and ensuring there are no air intake leaks. If the problem persists, the sensor or its wiring may need to be replaced after proper diagnosis.
Is it safe to drive with a P0100 error code?
While it may still be possible to drive with the P0100 error code, it is not recommended. The vehicle may experience poor performance and reduced efficiency, and continuing to drive without fixing the issue can lead to more serious and costly engine problems.
